082A coil chains
Description

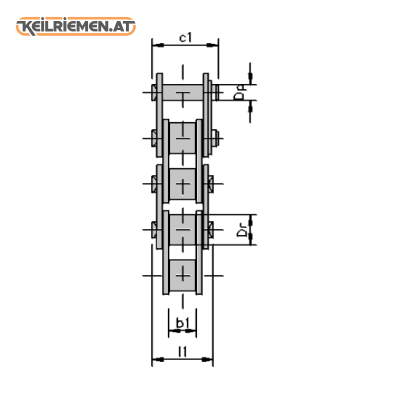

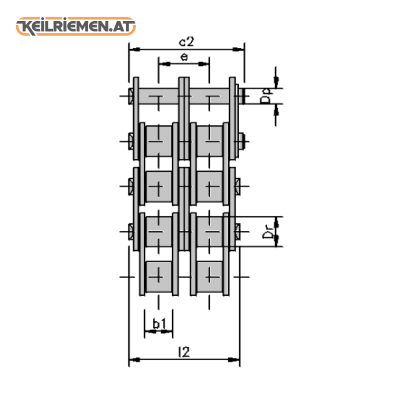

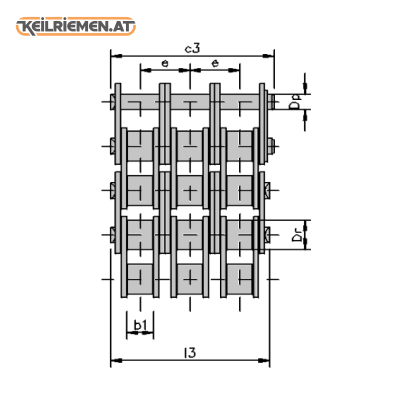

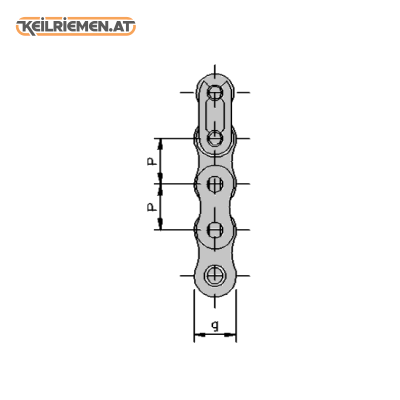

A roll of 082A ANSI41 marked roller chain unit contains a length of 5 meters. (Certain products can be 50m or 100 meters, this is marked separately.) Each 5-meter unit package (box) contains a roll of roller chain and a piece of straight patent eye. 082A ANSI41 roller chains can be single-row (simplex, designation 082A-1), double-row (duplex, designation 082A-2) and three-row (triplex, designation 082A-3). The pitch of the 082A chains is 12.7 mm, the inner width is 6.25 mm, and the roller diameter is 7.77 mm.
For roller chains marked 082A, a cotter pin marked 082A and a sprocket marked 082A must be used. However, we do not know such a sprocket. instead, we recommend the wheels of the 085 ISO roller chain, which is actually completely identical to this ASA chain, so the chain wheel can also be used!!!When installing a chain drive, the tensile strength of the roller chains specified in the catalog must always be taken into account! Downloadable catalog under the Downloadable Documents tab.
